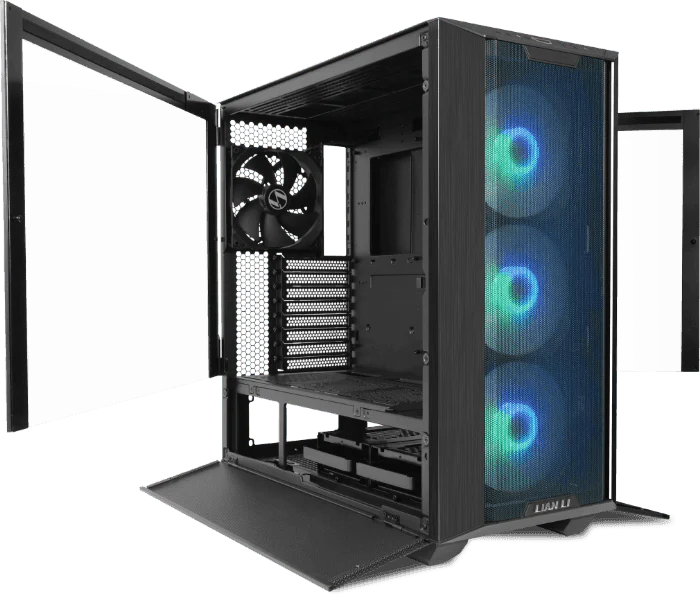

LANCOOL III

Mid-tower modular chassis for all kinds of configurations

Equipped with 4 × 140 PWM fans (ARGB or non-RGB)

Featured airflow optimized mesh structure and hinged side panels

Supports up to 420 radiator or 3 x 360 radiators and a maximum of 10 fans

Offers 12 storage drives mounting locations

Upgraded cable management solution for a clean build







SPECIFICATIONS

PRODUCT NAME LIAN LI LANCOOL III LIAN LI LANCOOL III RGB

MODEL LANCOOL 3-X LANCOOL 3-W LANCOOL 3R-X LANCOOL 3R-W

COLOR Black White Black White

DIMENSION (D) 526mm x (W) 238mm x (H) 523mm

MOTHERBOARD E-ATX (width: under 280mm)/ATX/MICRO-ATX/MINI-ITX

PSU CLEARANCE ATX (Under 220mm)

MATERIALS Aluminum (Door handles)

0.8mm SGCC (exterior and interior)

4.0mm tempered glass (both sides)

INCLUDED FANS Front: 3 x 140mm PWM fans

(200~1800 RPM / DC 12 V, 0.24A / 83.5 CFM / 2.3 mm H2O / 33dB-A)

Rear: 1x 140mm PWM fan

(200~1800 RPM / DC 12 V, 0.24A / 83.5 CFM / 2.3 mm H2O / 33dB-A) Front: 3 x 140mm ARGB PWM fans

(300~1650 RPM / DC 12 V, 0.23A, 0.35A / 83.5 CFM / 2.3 mm H2O / 33dB-A)

Rear: 1x 140mm PWM fan

(200~1800 RPM / DC 12 V, 0.24A / 83.5 CFM / 2.3 mm H2O / 33dB-A)

FAN SUPPORT Front (multi-way fan/radiator bracket): 3 x 120mm or 3 x 140mm

Top: 3 x 120 or 3 x 140mm

Rear: 1 x 120mm or 140mm

Above PSU Chamber: 3 x 120mm

RADIATOR SUPPORT Front: 360mm or 420mm

Top: 360mm or 420mm

Above PSU Chamber: 360mm

GPU LENGTH CLEARANCE 435mm (Max)

CPU HEIGHT CLEARANCE 187mm (Max)

STORAGE Behind MB tray: 2 x 2.5″ SSD

Behind right side PSU shroud panel: 3 x 2.5’’ SSD

Hard drive cage: 4 x 3.5″ HDD/2.5″ SSD

Above PSU chamber: 3 x 2.5″ SSD

EXPANSION SLOT 8

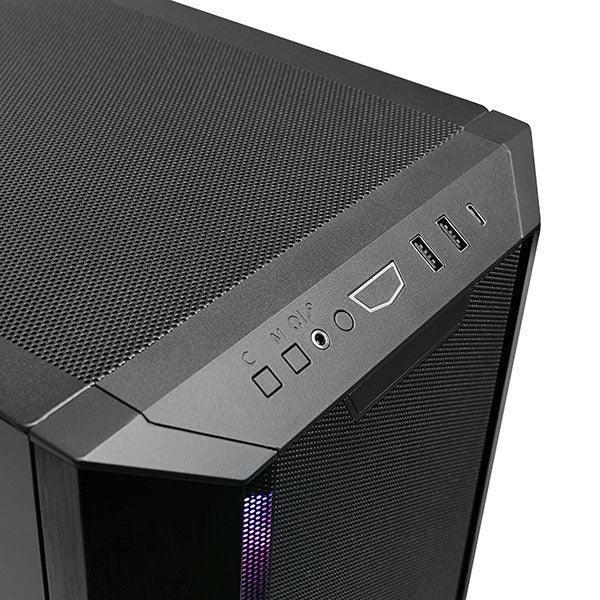

IO PORTS 1 x Power Button

1 x Reset Button

2 x USB 3.0

1 x USB Type C

1 x Audio 1 x Power Button

1 x Reset Button

1 x Light Color Button (C)

1 x Light Mode Button (M)

2 x USB 3.0

1 x USB Type C

1 x Audio
